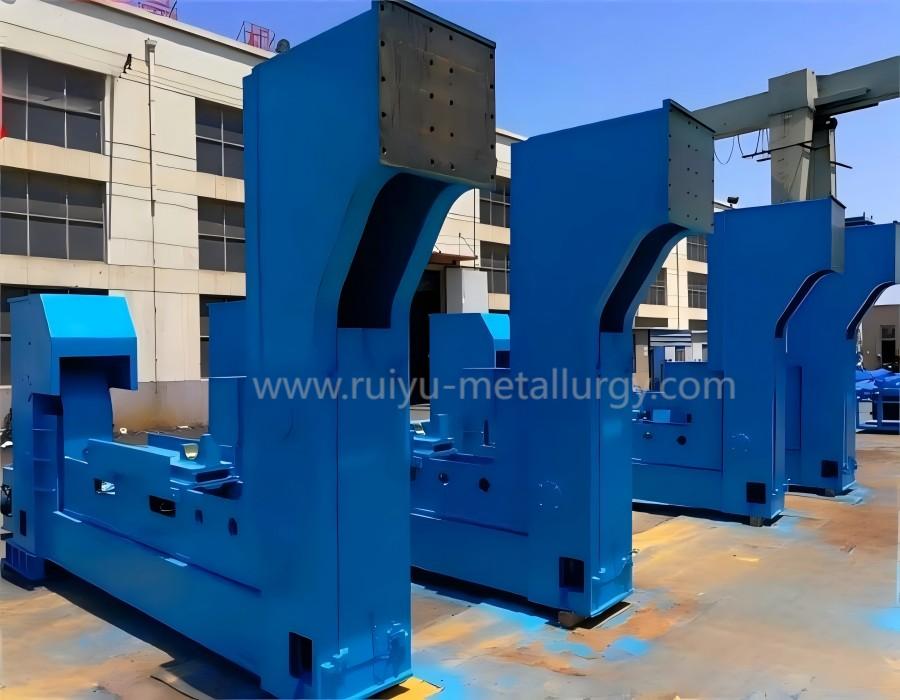

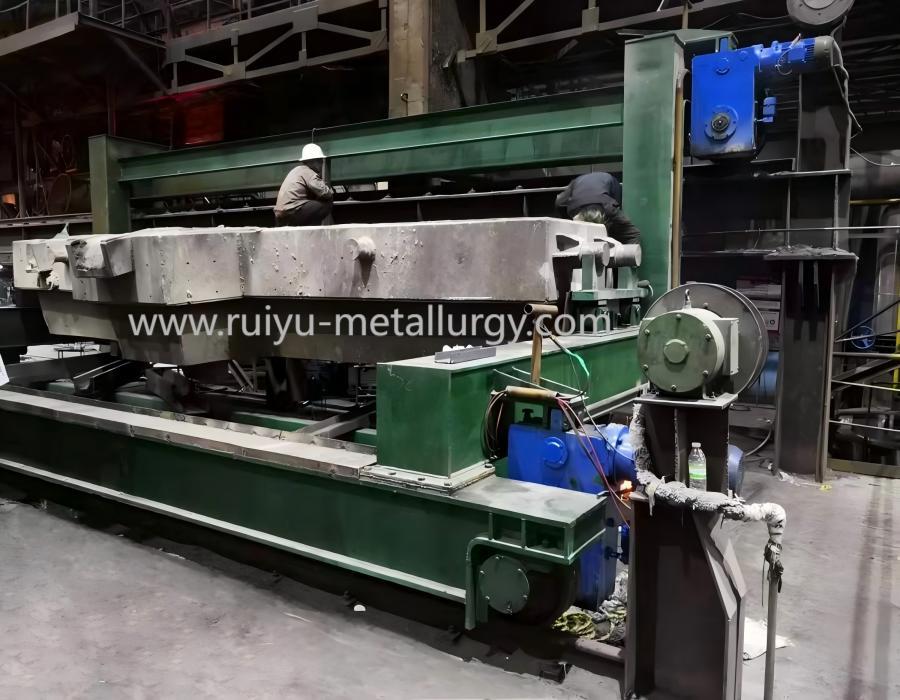

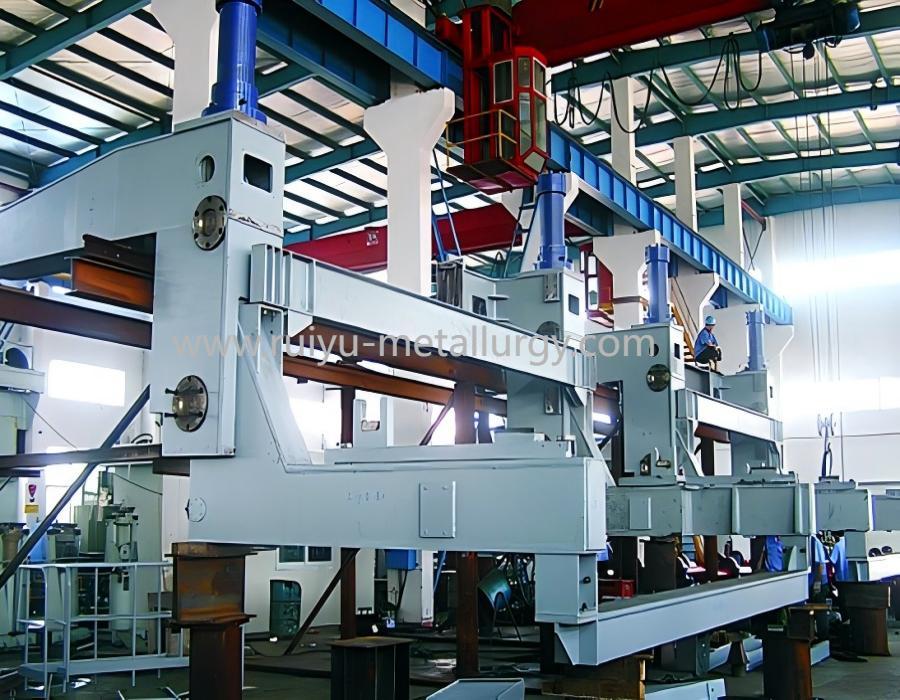

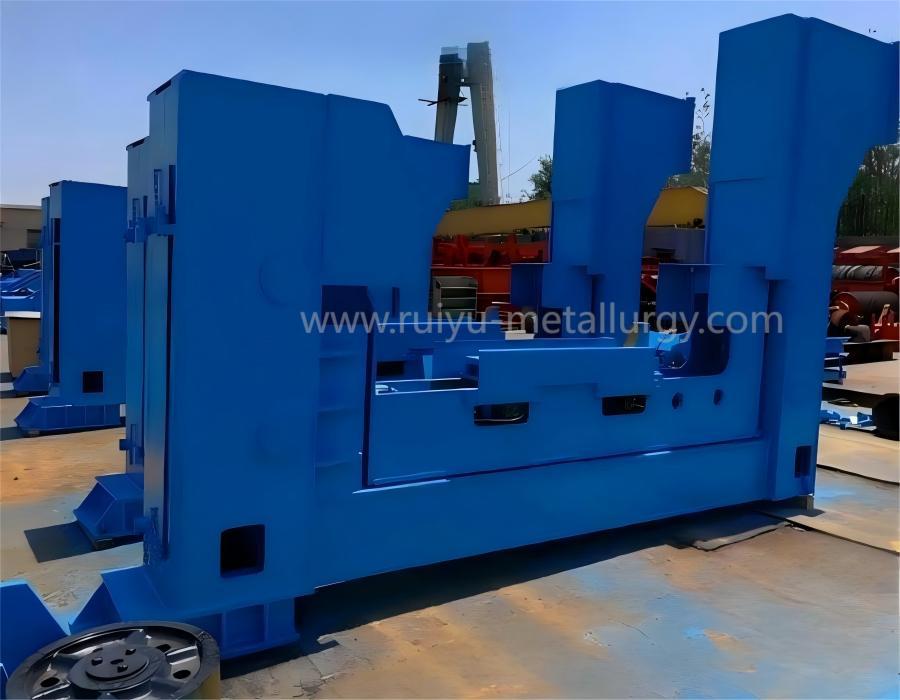

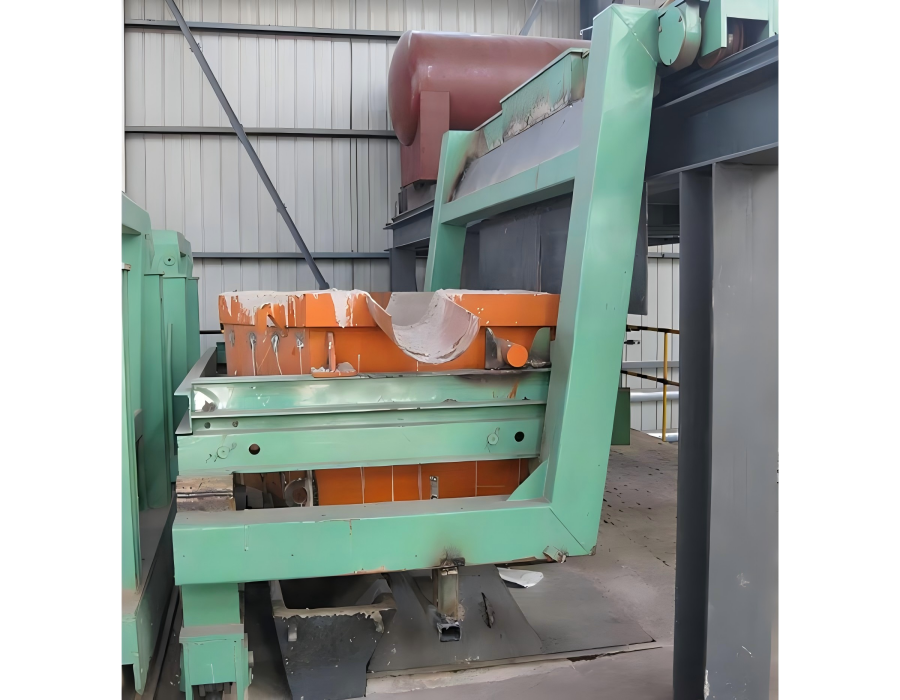

Tundish Car
Tundish car is a key auxiliary equipment in continuous casting production line, which is mainly used for transportation, positioning and replacement of tundish to ensure the continuity and efficiency of continuous casting process. As an important carrier connecting ladle turret and copper mould, the tundish Car undertakes the task of precisely transferring the tundish during the continuous casting process, and is an indispensable automation equipment in modern steel production.
Core Functions
Tundish transportation: Transportation of preheated Copper Mould from the preheating station to the pouring station of the continuous casting machine, or replacement of used tundish to the maintenance area.
Precise Positioning: Ensures that the tundish spout is aligned with the centerline of the copper mould to avoid steel deflection or splashing.
Continuous Production Support: Quick tundish changeover in multi-furnace continuous casting process reduces downtime and improves continuous casting efficiency.
Temperature control assistance: Some models are equipped with a heat-retaining cover or heating device to prevent the temperature of the liquid steel in the tundish from dropping.
Parameters         Typical range
Load capacity       20~150 tons
Traveling speed      3~15 m/min
Positioning accuracy   ±1~5 mm
Lifting stroke         200~800 mm
Carrying capacity      5~60 tons
| Optional various structure type | High-low rail two cylinder hydraulic lifting type High rail full hung two cylinder hydraulic lifting type High-low rail four cylinder lifting type (not recommended) Non-lifting type of above structure |
| Tundish lifting stroke | 450mm (normal stroke, hydraulic drive) |
| Tundish inner and outer arc cross stroke | 120mm（normal stroke, hydraulic or manual drive） |
| Tundish car running speed | 0~20m/min |
| Carrying capacity | Max.90t |
| Using inner arc two hydraulic cylinders + tilting proof guiding wheel system, which simplified lifting synchronous control (only using throttling valve), also been far from liquid steel injection area to protect oil cylinder and its pipes. | |
Our company has many years of experience in the production and marketing of tundish cars, and we have professional technical personnel who can produce and process according to customers’ individual needs. The above parameter data can be used for reference, if you have specific needs, please feel free to contact us.
