Continuous Casting Machine
- Continuous casting machine core equipment:
Ladle: Used for holding and transporting high-temperature molten steel.
Ladle Turret: Facilitates the rotation and positioning of the ladle to enable continuous casting.
Tundish: Regulates the flow and temperature of the molten steel to ensure a stable casting process.
Copper Mould Assembly: Rapidly cools the molten steel using a water-cooling system to form the billet shell.

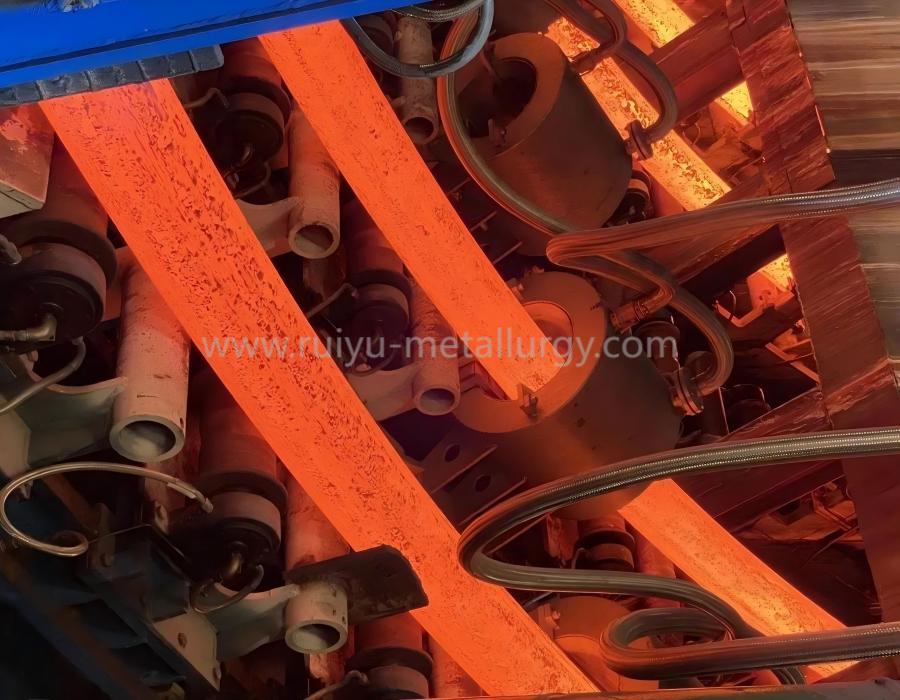

Secondary Cooling and Guiding System: Further cools the billet, ensures complete solidification, and guides its movement.
Mold Oscillation Device: Prevents the billet from sticking to the mold and ensures surface quality.

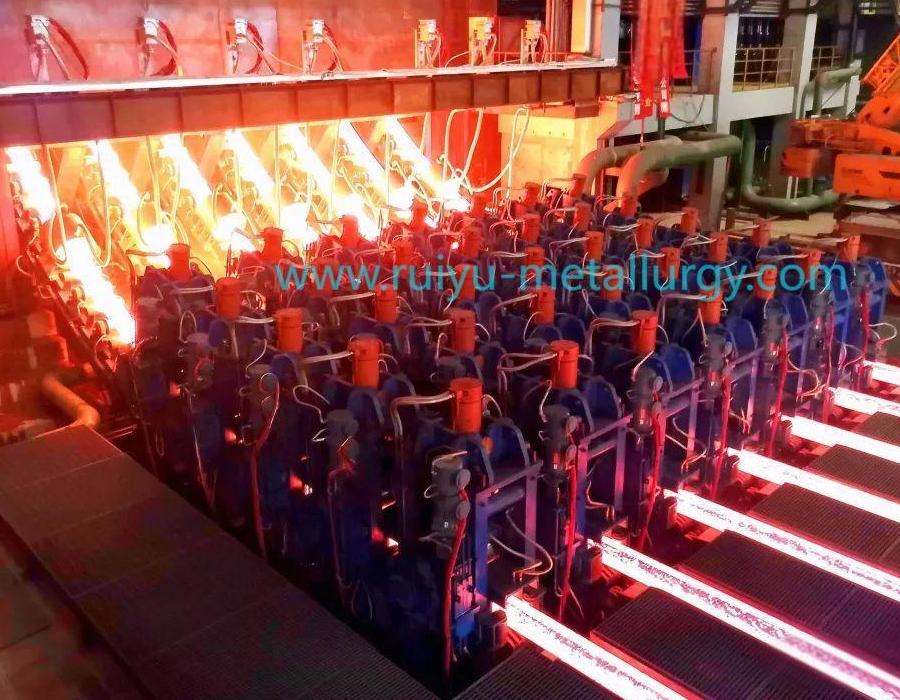

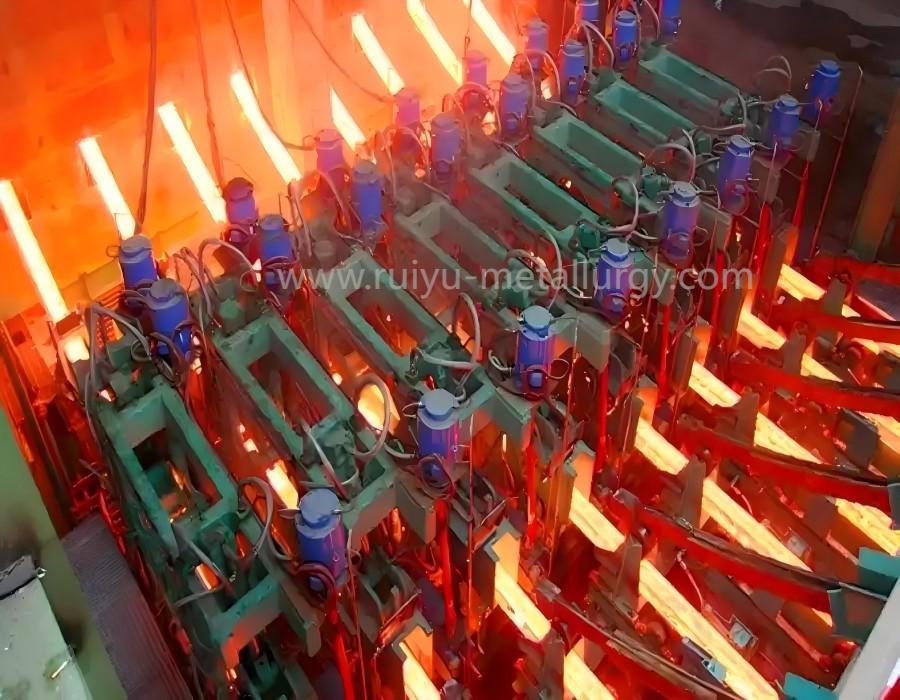

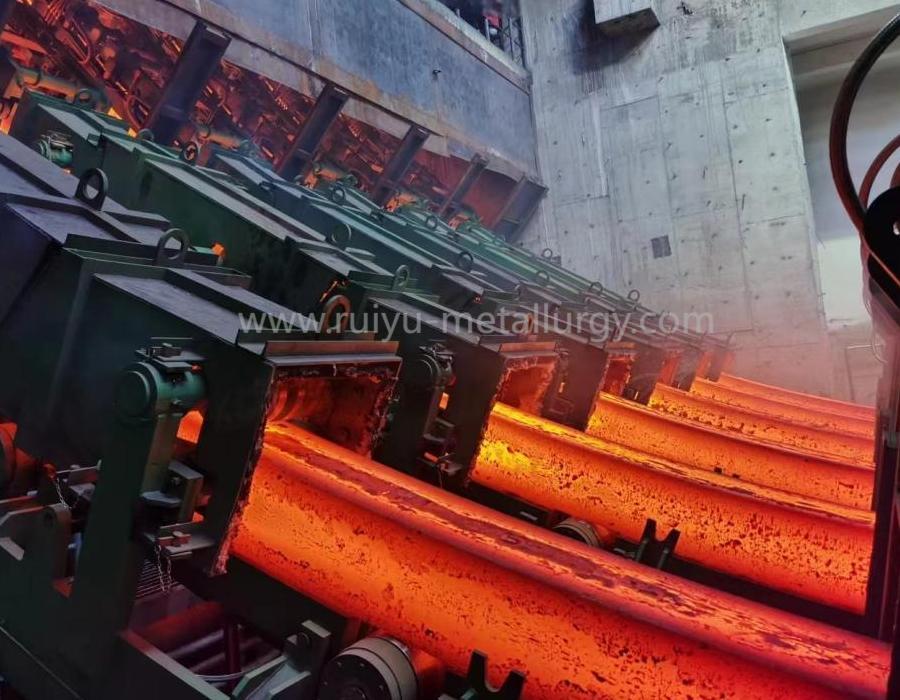

Withdrawal Straightening Machine : Controls the withdrawal speed of the billet and straightens it.
Dummy Bar Storage: Stores and retrieves the dummy bar used to initiate the casting process.

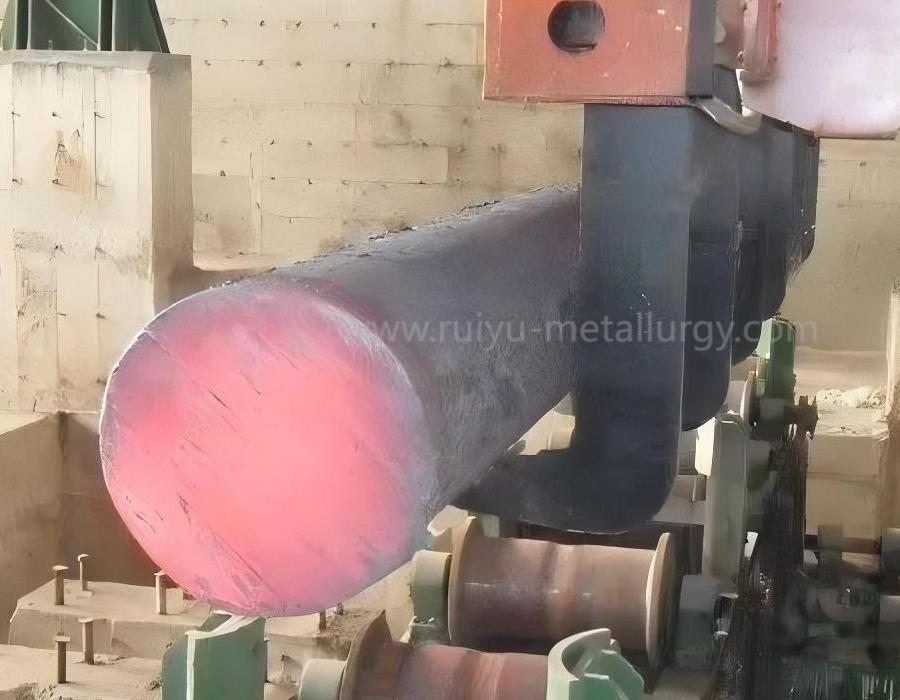

Cutting Device: Cuts the billet to the required length.

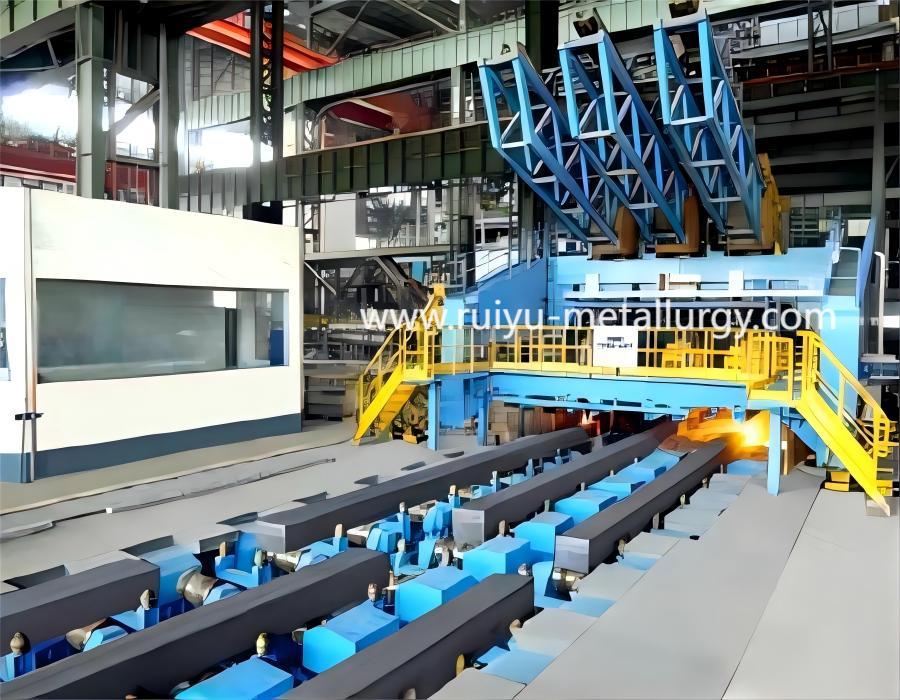

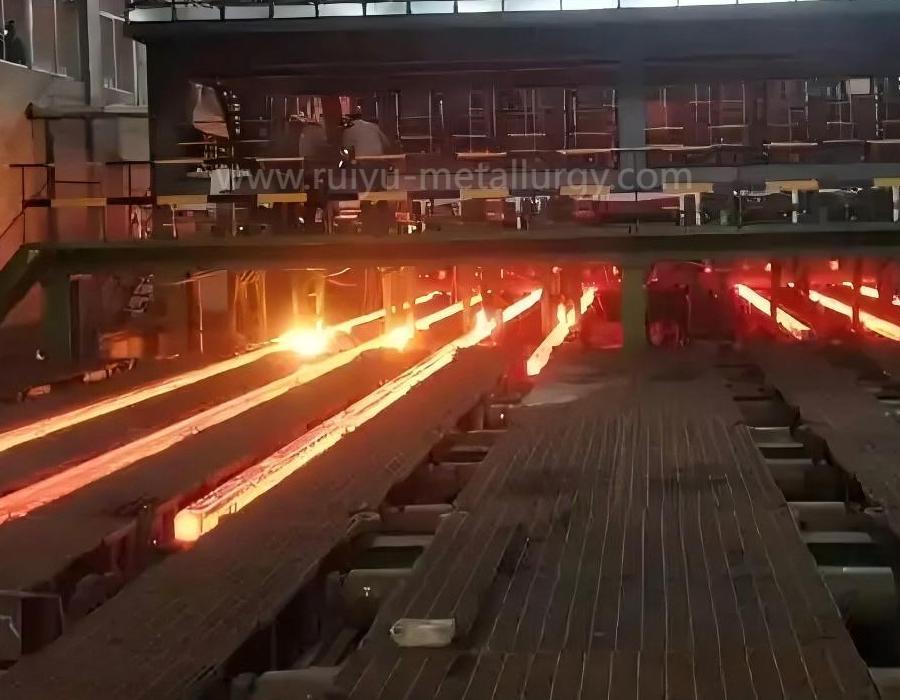

Billet Conveyor: Transports the cut billets to the next processing stage.
In addition, we provide continuous casting auxiliary equipment: baking units, pusher, shifter and palletizing tables, etc. to ensure a smooth production process.
- Main applications

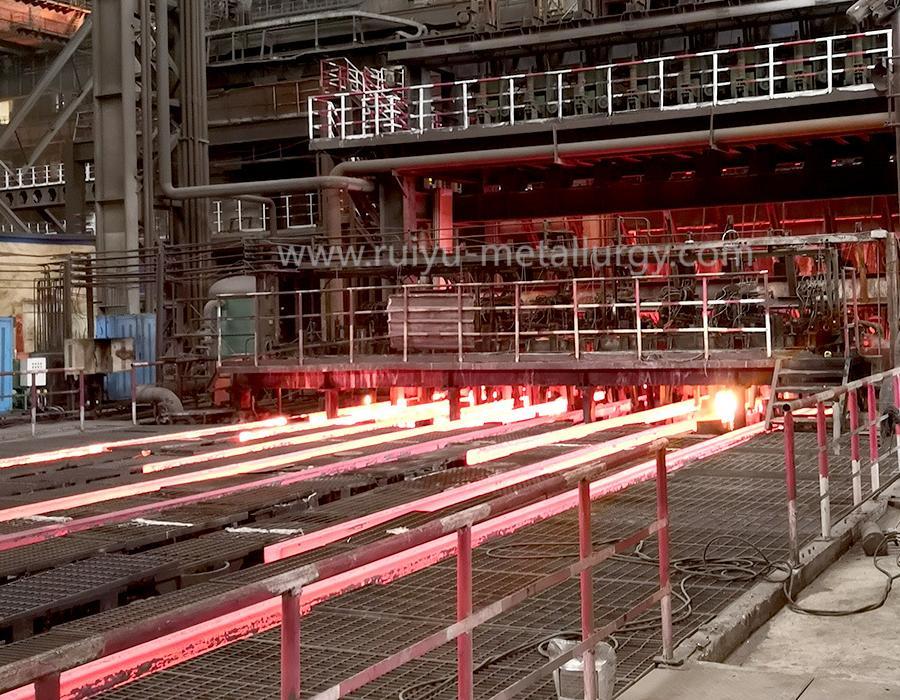

Continuous casting machines are widely used in the steel industry for the production of slabs, billets, and round billets. These billets serve as high-quality raw materials for subsequent processing and heat treatment in the manufacturing of plates, profiles, pipes, and other steel products.
3.Main Parameters
| Model：Rigid dummy bar full-arc caster/Flexible dummy bar full-arc caster |
| Radius(m) billet | R4.5~R16.5（continuous straightening） | |
| Section（mm） | Billet：100×100~220×220 Bloom：220×220~400×400 Rectangular billet：150~400×280~530Slab：    150 X450 ~ 250mmx 2000120×850 ~3600×1000 |
|
| Steel Type | carbon structural steel/ low-alloy steel/high-quality carbon steel/welding rod steel/ standard parts steel/cold forging steel/chain steel/spring steel/gear steel/bearing steel/stainless steel |
|
| Strands | 2/3/4/5/6/7/8/10 | |
| Casting speed（m/min） | Max. producing casting speed: 3.5m/min for 150 x 150 | |
| Billet cut-to-length（m） | 3~16 | |
| Caster operating rate（%） | 85~92 |
Our continuous casting equipment has advanced technology and stable performance, which can significantly improve the production efficiency and reduce the customer’s procurement cost, we always focus on customers, constantly optimize our products and services, and are committed to meet the diversified production needs of our customers, and are committed to providing customers with the best quality continuous casting equipment solutions, if you have any needs, please feel free to contact us.
